Setting groups

Set groups assigned to Camera Areas.

• Multiple Camera Areas can be assigned to the same group.
• Up to 8 Camera Area groups can be assigned for each microphone.

1. Select a Camera Area in the main area.

   “Camera Area” appears in the context panel.

2. Click the area in the red box next to “GR” under “Camera Area Group”.

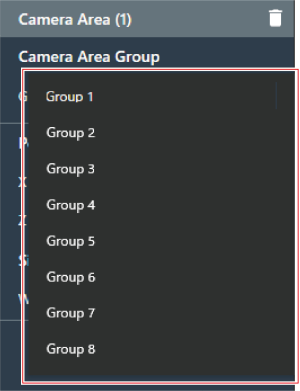

3. Select a group number from the pull-down menu.

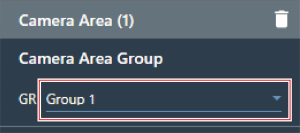

   The group number displayed in the Camera Area changes to the assigned group number.
