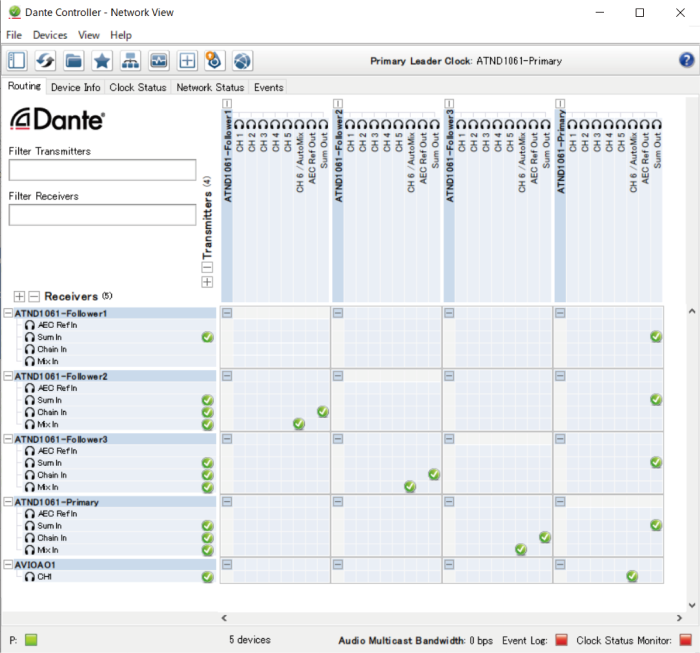

Dante Controller settings
Configure routing settings using the Dante Controller as follows.
Transmitters | Receivers |
---|---|
Follower1: Auto Mix | Follower2: Mix In |
Follower1: Sum Out | Follower2: Chain In |
Follower2: Auto Mix | Follower3: Mix In |
Follower2: Sum Out | Follower3: Chain In |
Follower3: Auto Mix | Primary: Mix In |
Follower3: Sum Out | Primary: Chain In |
Primary: Auto Mix | Output device |
Primary: Sum Out | Primary and all Followers: Sum In |
